660 Mm Five Bundled Conductor Stringing Pulley Block

Name: 660 Mm Five Bundled Conductor Stringing Pulley Block
Brand: Linkai
Price: 1 USD

China 660 Mm Five Bundled Conductor Stringing Pulley Block wholesale

Brand Name : Linkai

Model Number : 508mm large blocks

Certification : ISO

Place of Origin : Ningbo

MOQ : 10sets

Price : get the latest

Payment Terms : T/T, L/C, Western Union

Supply Ability : 800 sets/month

Delivery Time : 5-8 work days

Packaging Details : wooden case packing

Application : widely used

Performace : Durable, Corrosion Resistant

Service : After-Sales Service

Name : Cable pulley block

Type : stringing blocks

Size : 508mm stringing blocks

Contact Now

508mm Large Diameter Stringing Block Nylon Sheave Lifting Cable Pulley Electric Block For Conductors

508 mm stringing blocks

508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction. We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing. 1.Maximum suitable conductor ACSR400.Configuration: 2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm) 3.Sheave dimension Φ508×Φ408×100 (mm) can be customized

Technical Data

 	 			Item number 			Model 			Number of sheaves 			Rated load (kN) 			Weight (kg)
Features

 			10101 			SHD508 			1 			20 			18 			Rubber lined aluminium sheave
 			10102 			SHS508 			3 			40 			61 			Middle : Cast steel sheave
Conductor : Rubber lined aluminium sheave

 			10103 			SHW508 			5 			60 			93
 			10104/10104A 			SHDN508 			1 			20 			16 			MC nylon sheave
 			10105 			SHSLN508 			3 			40 			47
Middle : MC nylon sheave
Conductor : Rubber lined aluminium sheave

 			10106 			SHWLN508 			5 			60 			79
 			10107/10107A 			SHSQN508 			3 			40 			38 			MC nylon sheave
 			10108/10108A 			SHWQN508 			5 			60 			70


Product Tags:

overhead line stringing block

transmission line stringing block

Five Bundled Conductor Stringing Blocks

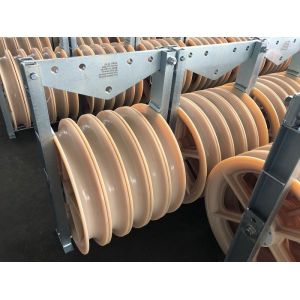

660 Mm Five Bundled Conductor Stringing Pulley Block Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Ningbo Lingkai Electric Power Equipment Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Item number	Model	Number of sheaves	Rated load (kN)	Weight (kg)	Features
10101	SHD508	1	20	18	Rubber lined aluminium sheave
10102	SHS508	3	40	61	Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave
10103	SHW508	5	60	93
10104/10104A	SHDN508	1	20	16	MC nylon sheave
10105	SHSLN508	3	40	47	Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave
10106	SHWLN508	5	60	79
10107/10107A	SHSQN508	3	40	38	MC nylon sheave
10108/10108A	SHWQN508	5	60	70	MC nylon sheave
